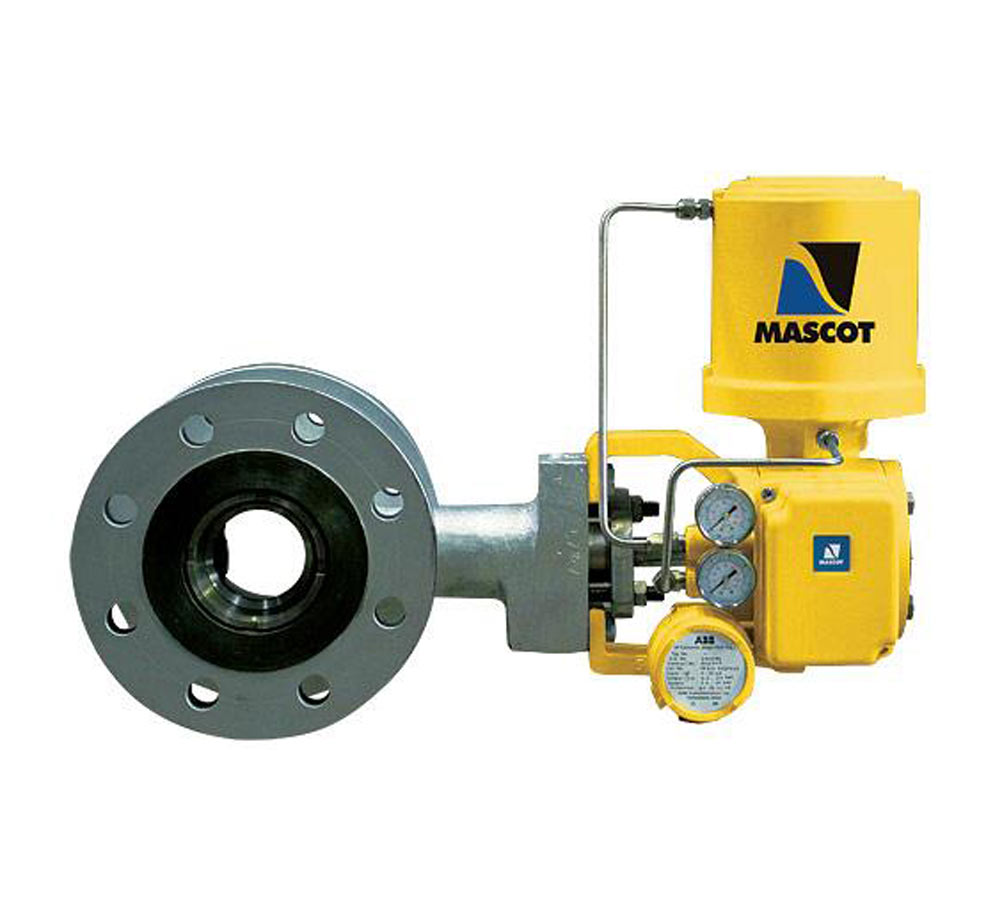

Eccentric Plug Control valves - EFLO

EFLO Eccentric Plug Control Valve based on a heavy-duty industrial design, with high flow capacity Cv, high rangeability (160:1) is available with a wide range of different trim sizes.

Available in sizes 1-inch up to 42-inches, pressure classes up to CL4500#. Available in a wide range ofmaterials and can be combined with either a metal, Class IV or soft seat with Class VI shutoffcapabilities. Highly suitable for erosive applications involving harsh and/or entrained particleservice such as geothermal applications.

‍

View Specifications

Specifications

Body Types

Globe, Angle, 3 Way, Jacketed - Heavy Duty Industrial Design, top-entry, ease of maintenance

Size

0.5" to 72"

Pressure Rating

ANSI CL150 to ANSI CL4500

End Connections

Integral Flange RF, RTJ, Buttweld, NPT/BSP Screwed, Socketweld, Seperable Flange, AS2129

Body Material

Carbon Steel, Chrome Moly, 316SS, 304SS, Duplex SS, Monel, Hastelloy B&C, Zirconium, Titanium, any other Exotic Alloys

Trim Material

316SS, 304SS, Alloy 6, 416SS, 440SS, Bronze, Monel 400, Alloy 20, Duplex SS, Hastelloy B & C, Inconel, Zirconium, Titanium, Tungsten Carbide, Ceramic

Shut off class

Class IV, Class V and Class VI

Characteristics

Equal Percentage, Linear and Quick Open

Temperature Range

Cryogenic through to High Temperature

Rangeability

High Rangeability

Gland Packing

PTFE V Ring, Braided PTFE, Grafoil, Low Fugitive Emission, Fire Safe Packing

Special Trims

CAVFLO, MEGAFLO, TAPERFLO, GFLO VC Trim

Actuator

Pneumatic Spring Cylinder / Electric / Hydraulic
