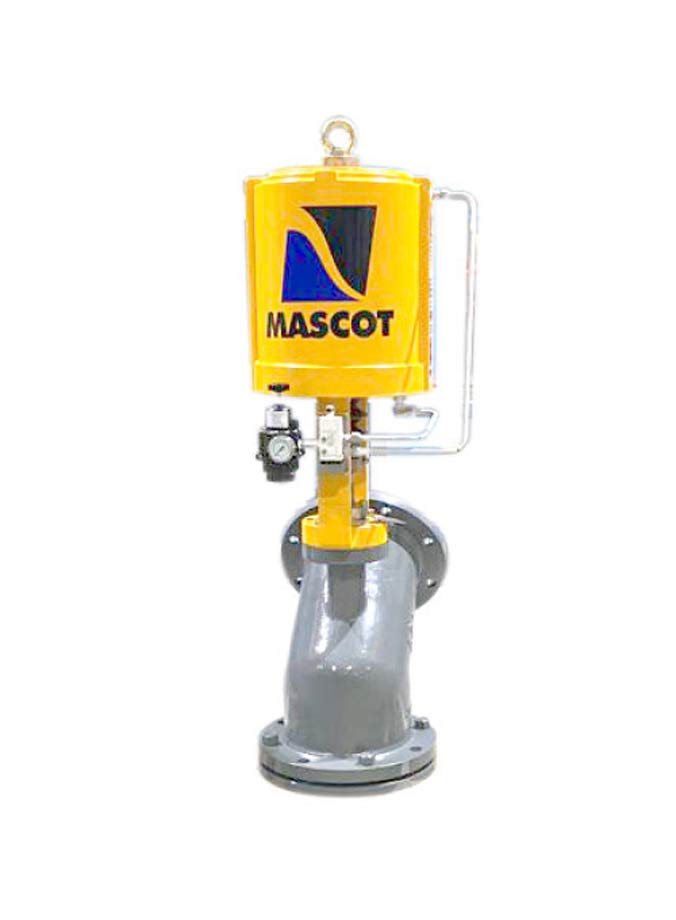

The FLUSHFLO is a high-performance flush bottom discharge valve for tank and vessel draining and it is suitable for mounting on vessel pad flanges. We can manufacture this valve in all castable alloys and with a range of lining up to 12.0".

Steam jacketed options are also available.

‍

View Specifications

Specifications

Body Types

Globe, Angle, 3 Way, Jacketed - Heavy Duty Industrial Design, top-entry, ease of maintenance

Size

0.5" to 72"

Pressure Rating

ANSI CL150 to ANSI CL4500

End Connections

Integral Flange RF, RTJ, Buttweld, NPT/BSP Screwed, Socketweld, Seperable Flange, AS2129

Body Material

Carbon Steel, Chrome Moly, 316SS, 304SS, Duplex SS, Monel, Hastelloy B&C, Zirconium, Titanium, any other Exotic Alloys

Trim Material

316SS, 304SS, Alloy 6, 416SS, 440SS, Bronze, Monel 400, Alloy 20, Duplex SS, Hastelloy B & C, Inconel, Zirconium, Titanium, Tungsten Carbide, Ceramic

Shut off class

Class IV, Class V and Class VI

Characteristics

Equal Percentage, Linear and Quick Open

Temperature Range

Cryogenic through to High Temperature

Rangeability

High Rangeability

Gland Packing

PTFE V Ring, Braided PTFE, Grafoil, Low Fugitive Emission, Fire Safe Packing

Special Trims

CAVFLO, MEGAFLO, TAPERFLO, GFLO VC Trim

Actuator

Pneumatic Spring Cylinder / Electric / Hydraulic
